AlcoVisor Police Breathalyzer

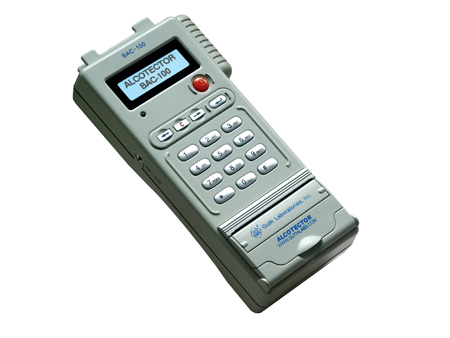

The BAC-100 Pro Breathalyser is the World's first hand held fuel cell alcohol detector, keypad and printer combined together.

This is a great model for employee screening/testing where a hard print out test result is required but where the expense of a Draeger 6810/Printer combination is outside the budget. This unit offers Police grade accuracy at a fantastic price.

It is approved and in full use for evidential testing with Police Forces in:

USA, Russia, Poland, China, Mexico, Argentina, Chile, India, Thailand, Estonia, Lithuania, Iraq etc .

Powerful functions include:

Flow rate and blow time error technology, print copy adjection, ability to key in all information which the user may need, step by step operating indications. The BAC 100 offers both direct and passive sampling. (A sample can be taken without a subject blowing into the unit, although less accurate than normal sampling methods).

Outstanding Features:

Fuel Cell: The fuel cell offers exceptional accuracy and a long stable lifespan. The fuel cell has a response which is linear and directly proportional to Breath Alcohol Concentration (BrAC). Having a high specificity to alcohol, the fuel cell is not influenced by acetone or other breath substances.

Digital Input Keyboard: The Alcotector has a unique outstanding feature which other competitive models do not provide. It has a fully integrated keyboard for data entry. The input digital keyboard is a standard keyboard layout with 12 separate keys which are alpha-numeric for hand data input.

The Alcotector will automatically store 2000 tests.

Internal Printer : A thermal printer is combined with the detector. The printer function, provides the time and dates of alcohol tests, the alcohol concentration (BrAC), names, location, vehicle identification (if required) , subject, driver license number (if required), breath test operator (if required), and the serial number of the Alcotector for later use in court/tribunals if required.

This unit is calibrated to the UK Police standard of ug/100ml - UK limit will display as 35.

Outstanding Accuracy

It can be used in any country.

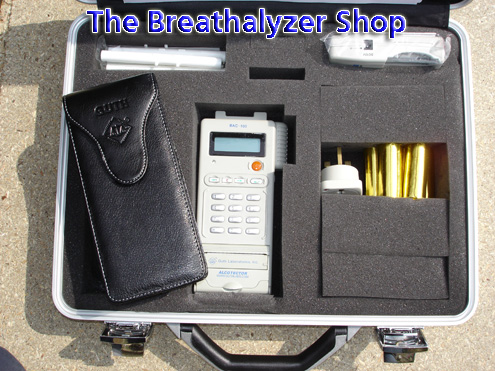

Kit Includes:

Hard Aluminium Carry Case - Supplied with 2 x keys for security

50 Hard Plastic Mouthpieces

5 Spare Printer Rolls

In Car 12V Connector

Leather Carry Case

Batteries

BAC100 Technical Data Sheet

		Sensor Electrochemical fuel cell Working temperature -5~45 celsius Storage temperature -15~65 celsius Storage humidity Not greater than 95% Size 195mm X 68mm X 35mm Weight 295gm without batteries Battery life Not less than 500 tests Battery 4 X 1800mAh AA Ni-Mh rechargeable battery Display LCD size 50mm X 17mm, 128pix X 32pix Response Time 20 seconds Sampling system Automatically takes a deep lung sample or a manual test Optional power supply 12 volt Car Adapter or AC 6 volt Adapter Clock Real time clock Units of measure BrAC: mg/L, or any other units BAC: grm%, mg/mL, mg/100ml, or any other units Detection Range from 0.00 up to 4.0 BAC (12 x UK limit !) Self Diagnostics Programmed self-check assures unit is operational upon power-up Accuracy Meets DOT Specifications +/- .005 mg/ml up to 1.00 BAC and +/- 5% above 1.00mg/ml Sampling Accuracy 0,01 mg/ml(digital display) Memory Able to save 2000 test results Pump Automatically actuated electronic pump system. No cocking required Memory Able to save 2000 test results Breath sampling time Up to 4 s continuous breath. Time gap between measurings Not more than 1 min Preparing time for work Not more than 1 min Power Supply 4 x AA Batteries - supplied Usable power Not more than 20 W





£825.00 inc vat & free delivery



£20.00 inc vat & free delivery





12 Month Warranty

Same Day Dispatch

High Accuracy

Certified
